Plastic Deformation

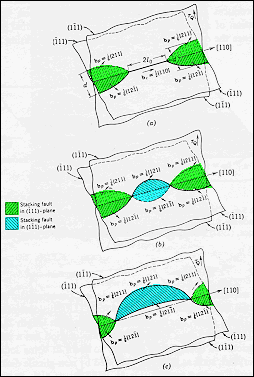

· The stages in the cross-slip of partial dislocations and their stacking fault is illustrated opposite.

Click on the picture for animation.

From: Hull, "Introduction to Dislocations," Pergamon (1965)

· Glide continues on the second plane and the cross slipped length increases with time.
