Phase Diagrams

· The equilibrium phases present at a given temperature and their composition are determined by the requirement that the system have the lowest Gibbs function.

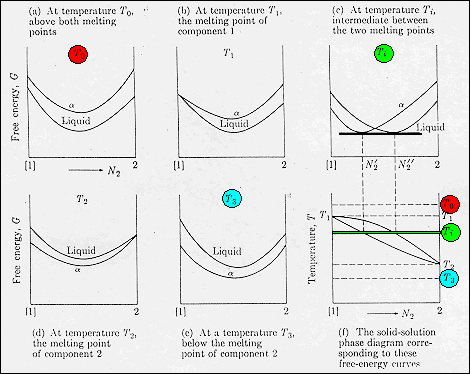

· For a binary alloy that has solid state solubility over the complete composition range, the Gibbs function curves have the form shown.

From: Guy & Hren, "Elements of Physical Metallurgy," Addison Wesley (1974)
