Composite Materials

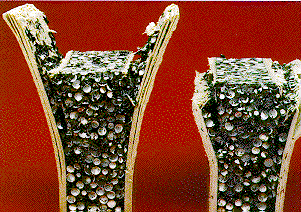

· Two energy absorbing configurations are shown. The left picture is a shaped fiber composite structure, that on the right has a sandwich construction with the center filled with hollow ceramic balls.
· These structures fold and break on impact and can be designed to fail at a given impact loading.

From: High Tech Report 2 (1995), Daimler-Benz Group
