Diffusion

· As is the case for many new fabrication methods the design of parts to be made by powder metallurgy needs to be reconsidered to take full advantage of the technique.

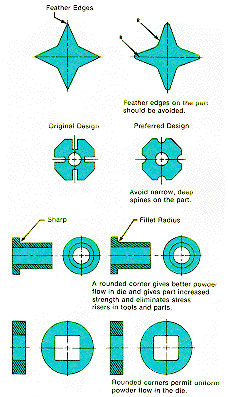

· The shapes shown opposite are the machined designs (left) and the powder metallurgy designs (right).
· The powder metallurgy parts avoid sharp section changes as compaction density is hard to control in such regions. Rounded edge features are employed to maintain green shape strength.

From: "P/M Design Guidebook," Metal Powder Industries Federation (1983)
