| Failure Mechanisms | |||||||||||||||
| ·

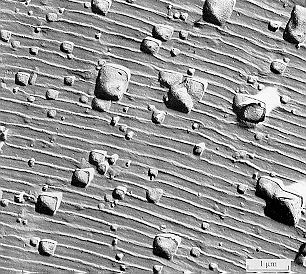

Striations
on a fatigue crack in a 2024-T3 Aluminum
alloy are shown (etched sample). Each step represents the crack advance
in one stress cycle.
· The crack propagation direction is normal to the striations and from the bottom to the top of the photograph. · The particles shown on the fracture surface are second phase precipitates in the alloy due to its composition and heat treatment. |
|||||||||||||||
 |
|||||||||||||||
| From: Suresh, "Fatigue of Materials," Cambridge (1991) | |||||||||||||||
