Failure Mechanisms

· New materials will be required to reach higher turbine inlet temperatures. Ceramic matrix composite materials are probable candidates.

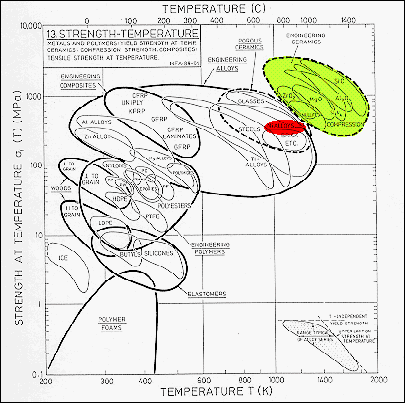

· The selection chart shows one hour strength at the indicated temperature. For 10,000 hours, the strengths are lower.

From: Ashby,
"Materials selection in Mechanical Design,"
Pergamon (1993)
