Failure Mechanisms

· Taking the logarithm of the Dorn-Weertman equation gives:

· A plot of ln (creep rate) vs. 1/kT should have a slope equal to the energy of self diffusion energy of the material.

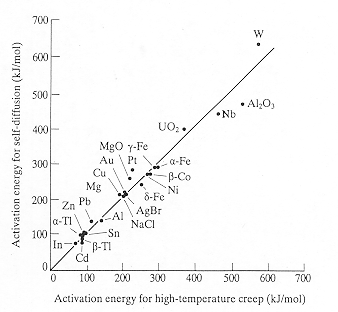

· The correlation between the activation energy for creep and the self diffusion energy is also seen to be good for a wide range of materials

From: Courtney, "Mechanical Behavior of Materials,"
McGraw Hill (1990)
